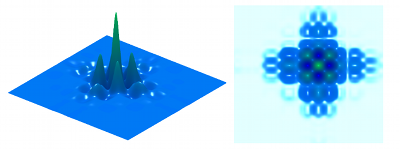

This page shows some fancy 3-D pictures of 2-D wavelets. |
Below are some interactive demonstrations of various wavelet properties and in particular
the Dual-Tree complex wavelets.
Notes w.r.t. the use of the applets:
1. Wavelets |
|
|

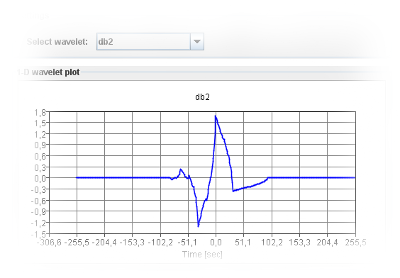

Visualization of 1-D wavelets Shows a visual representation of various 1-D wavelets: Daubechies wavelets, Symmlets, Coiflets, ... |
|
2D Discrete Wavelet Transform (DWT)

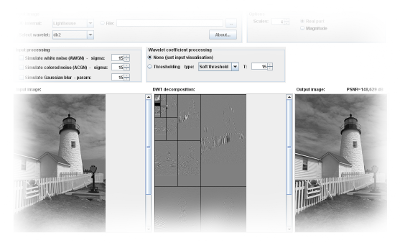

of images Explore the use of the DWT as an efficient tool for image representation. On this page, you can generate images with simulated Gaussian noise (white or colored) and Gaussian blur. Next, you can investigate the effect of soft/hardthresholding on the wavelet coefficients and you can see the reconstructed image. |
2. Complex Wavelets |
|
| During the last decades, many alternative multiresolution representations have been developed in order to give a solution to the previously mentioned problems with the DWT. One such transform is the dual-tree complex wavelet transform (DT-CWT) [Kingsbury, 2001], which is very related to the DWT and which also provides a multiresolution analysis. | |
|

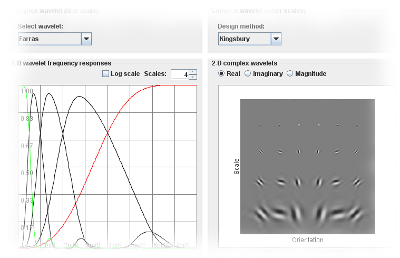

Complex Wavelet Browser Allows you to inspect the properties of a number of complex wavelets: spatial localization, frequency localization, directional selectivity. This page also allows you to design your favorite complex wavelet on the fly, using existing design techniques from literature. |
|
Dual-Tree Complex Wavelet decomposition

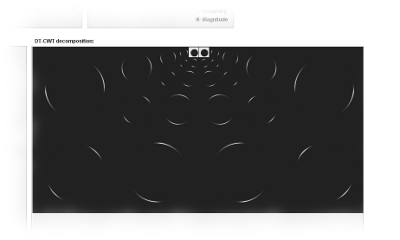

of an image Shows the full DT-CWT decomposition of an image into different scales and orientation bands. Applied to standard images like the zoneplate image, this gives a good idea of the directional analysis capabilities of this transform. |
|
Estimation of the locally

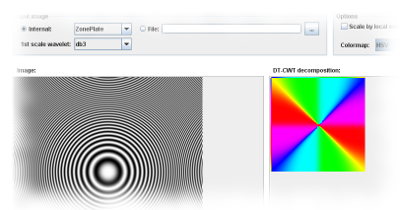

dominant orientation of edges in an image Here we estimate the locally dominant orientation of edges in the image, based on information in different orientation bands on the first scale of the DT-CWT. |
|
Steering Dual-Tree Complex Wavelets:
is this possible?

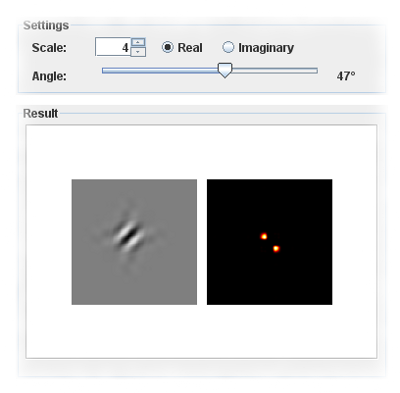

On this page, we investigate whether it is possible to steer complex wavelet basis functions (and to what extent). A 2-D function is called steerable when it can be written as a linear sum of a fixed number of rotated versions of itself. |
3. Steerable Pyramids |
|
| The steerable pyramid (STP) transform [Simoncelli et al., 1992, Simoncelli and Freeman, 1995] is a 2D multiresolution transform that, like the DT-CWT, has been introduced to overcome limitations of the DWT. | |
|
Steering the Steerable Pyramid Transform
filters

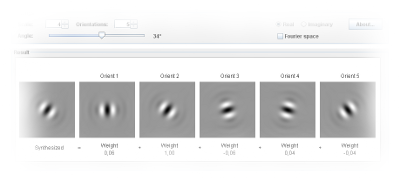

Steerable filters in any orientation can be synthesized as a linear sum of a fixed number of rotated versions of itself. This is illustrated in this example. |
4. Shearlets |
|
| The shearlet transform, is a very recent sibling in the family of geometric image representations and provides a traditional multiresolution analysis. By a specific design of the discrete shearlet transform that we use, a lower redundancy factor is possible than with most other multiresolution representations, while offering an excellent directional analysis and even shift invariance. | |
|
Plot of shearlet basis functions

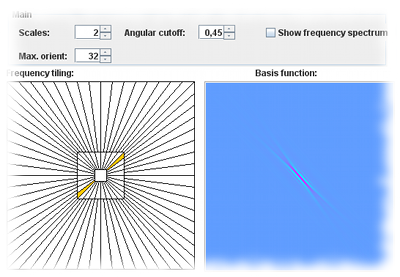

This applet shows a visualization of different shearlet basis functions (spatial domain + frequency domain). |
